Steel transfer chutes

RULA design, manufacture and supply trsndfer chutes for a wide range of applications

Description

The transfer chutes are an integral component in bulk materials handling systems. The chutes are engineered for optimal availability, passive dust control and ease of maintenance for operations. Common chute designs include the guided flow concept with optimised bonnet and ladle or traditional dead box impact type to accommodate highly abrasive materials in certain high wear, high impact areas.

Design Features

- High quality with durability and more than 98% availability.

- DEM flow simulations to have efficient flow geometry.

- Chute plate wall thickness optimisation to reduce cost.

- Liners as required to optimise flow and wear

- Deflector plates are adjustable to optimise flow

Material of construction specifications

- Main steelwork: SANS 50025 Grade S 355 JR

- Plate work: SANS 50025 Grade S 255 JR

- Liners: Ceramic, HDPE, UHMWPE, VRN Plate liners of various thickness.

Sizes

- Steel chutes are made to suit any size and shape to fit your plant requirements.

- Drilling arrangement to suit plant interface.

Operating & Maintenance

The chutes are operator and maintenance friendly.

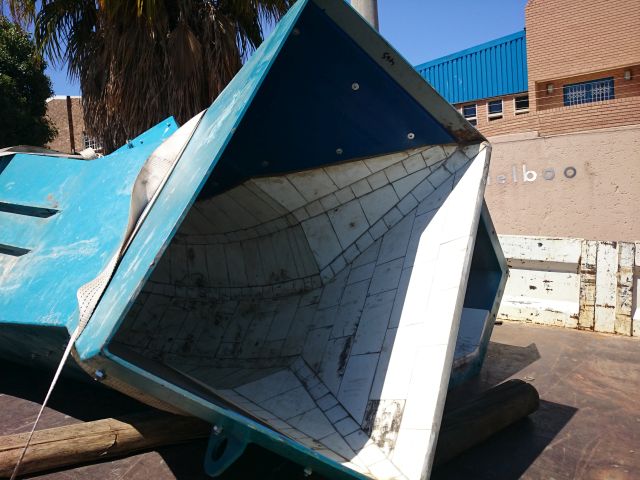

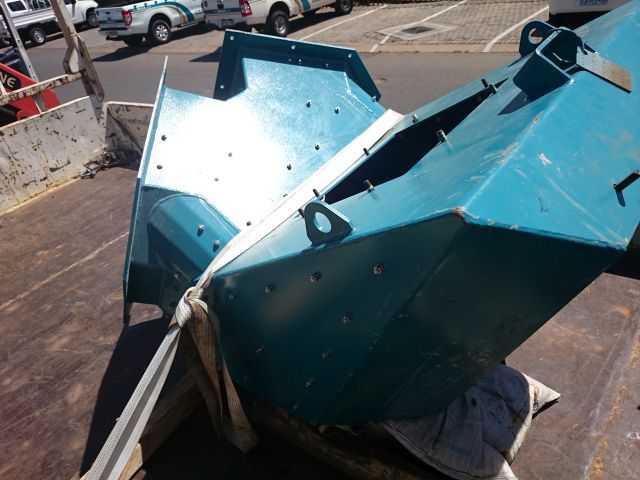

Photo Gallery
