Clamshell gate valve

RULA design, manufacture and supply belt ploughs for a wide range of applications

Description

The function of the RULA clamshell gate valves are suited for the unrestricted bulk discharge of bulk materials out of silos and bunkers.

The clamshell gates are fitted with meshing gears and are laser cut to suit the size of the gate.

Clamshell gates are suited for the unrestricted bulk discharge of bulk materials out of silos and bunkers. In an open position the clams are situated outside the area of material flow thus reducing wear and improving the life of the clamshell gate valve.

The clamshell gate is designed so that most material tends not to push the gates open under normal operating conditions resulting in a ‘fail safe’ gate should air pressure be lost to the pneumatic cylinder.

Types of actuation

Actuation can be pneumatic or hand operated units

Design Features

Cost competitive if compared to other isolation solutions

Material of construction specifications

- Bodies: SANS 50025 Grade S 355 JR plate

- Clams: SANS 50025 Grade S 355 JR plate

- Gears: SANS 50025 Grade S 355 JR plate or wear resistant steel

Sizes

- Clamshell gate valves are purpose made in any standard pipe size and shape to fit plant requirements

- Drilling arrangement to suit plant interface

Operating & Maintenance

- The clamshell gate valves are Operator and Maintenance friendly

- A complete Operating & Maintenance manual is available

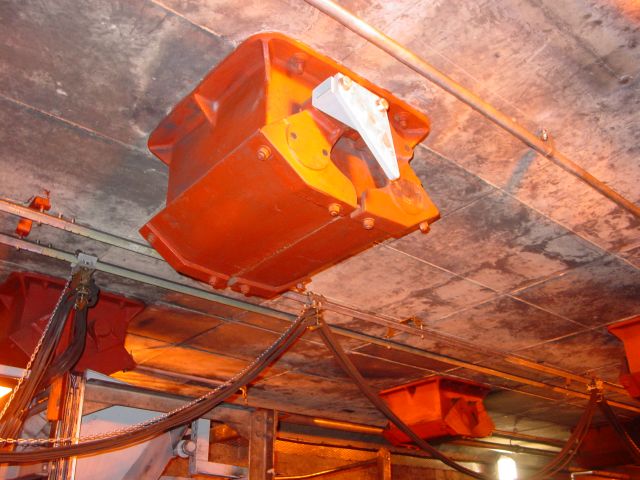

Photo Gallery
