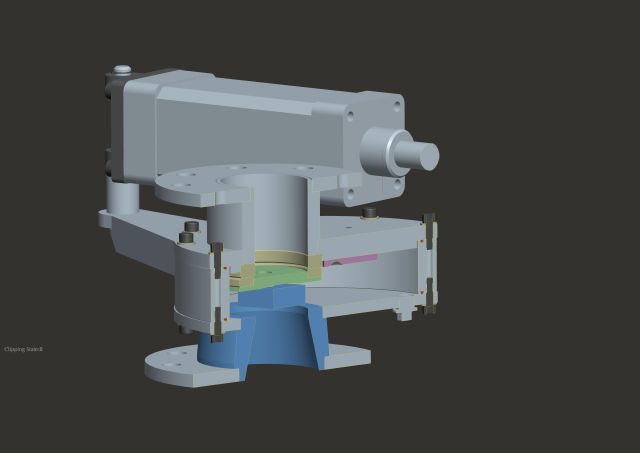

Disk Valves

Description

The function of the RULA Single disk valve is to provide positive isolation to product flow. These valves are engineered for applications such as Silo discharge systems, Conveying systems, Hopper discharge isolation requirements.

Types of actuation

Pneumatic, electric motor actuated and hand operated

Design Features

- Our product range include round, square and rectangular valves

- The square and rectangular valves can be designed to include an aeration pad

- Manual valves have an ACME thread on the spindle allowing smooth and speedy opening and closing of the valve with low torque requirements

- Valves feature a unique secondary seal with a pressure piece to ensure a constant positive pressure on the blade to enhance the sealing

- The primary seal arrangement is made up of wear resistant woven fabric, clamping plates which provides a dust proof seal

Material of construction specifications

- Valve Body: SANS 50025 Grade S 275 JR or Stainless steel - Grade 304

- Blade: Stainless steel - Grade 304

Sizes

- Valves are made to suit any size and shape to fit your plant requirements

- Drilling arrangement to suit plant interface

Operating & Maintenance

- The valves are Operator and Maintenance friendly

- A complete Operating & Maintenance manual is available
