Air Reticulation system

RULA design, manufacture and supply air recticulation systems for a wide range of applications

Description

The purpose of the air reticulation system in a bulk handling system is to supply a constant volume and pressure of air to convey the required product.

The air reticulation system comprise of the following equipment

- Inlet air filter

- Inlet AIR duct

- Compressor complete with electrical motor

- Air drier

- Discharge air piping

- Air receiver

- Cooling water piping and cooling towers

Typical Applications

- Pneumatic conveying systems

- Service air system

- Control air system

Types Manufactured

RULA manufactures a wide range of air reticulation systems for pneumatic conveying systems, service air system and control air system to suit the needs of the conveying system

Design Features

Optimal utilisation of the air supply compressor

Material specifications

Piping SANS 62 AND sans 719 Pipes and fittings

Flanges: SANS 1123:1977

OR as per client requirements and specifications.

Sizes

Air reticulation system are purpose made in any size and shape to fit plant requirements

Operating & Maintenance

The air reticulation system is Operator and Maintenance friendly

A complete Operating & Maintenance manual is available

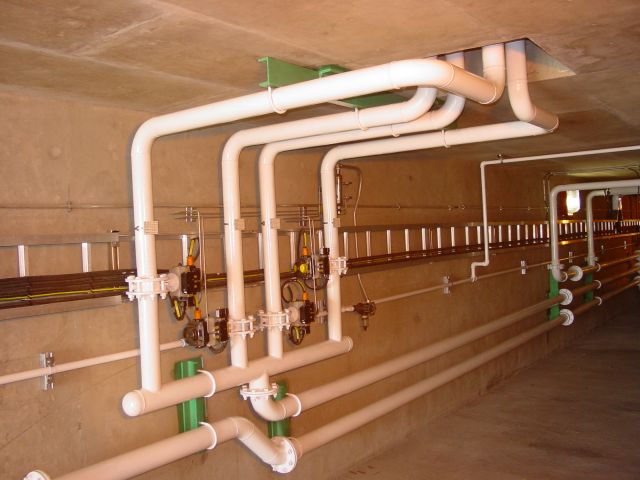

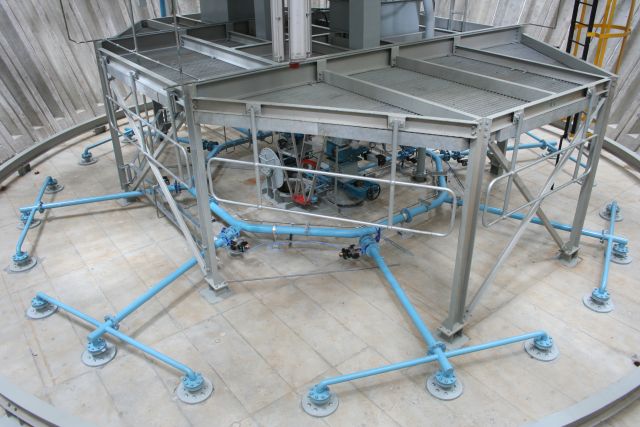

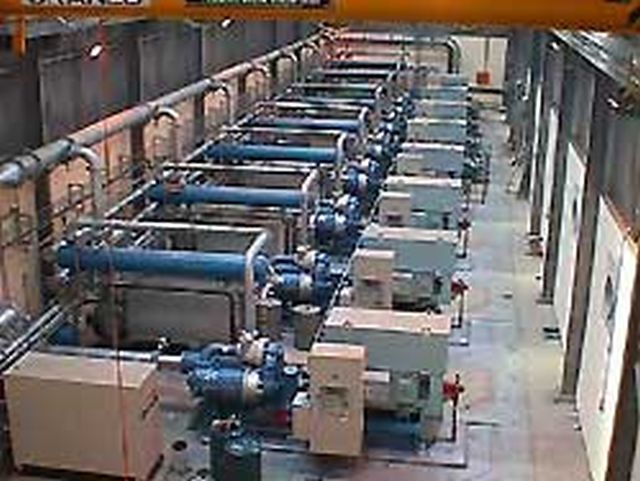

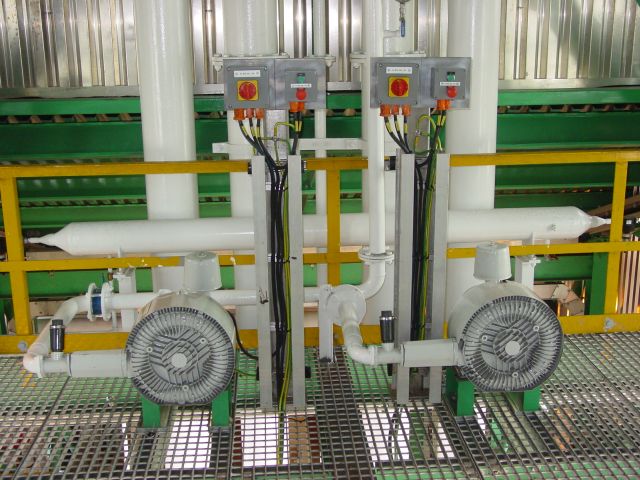

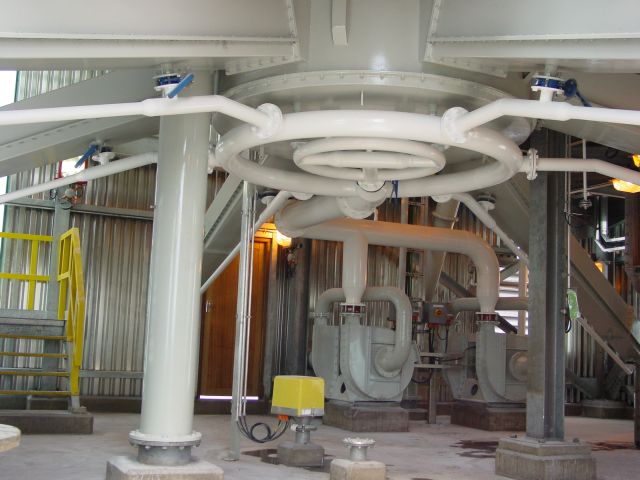

Photo Gallery
